Federated Learning Platform

Federated Learning

Federated Learning is a distributed approach to machine learning that enables collaborative model training across multiple nodes without requiring data centralization. Instead of sharing raw data, participants transmit model updates — gradients or weights — to a central server for aggregation.

Horizontal Federated Learning (HFL) applies when participants share the same feature space but hold different data samples. Each participant trains a local model and periodically pushes updates to a central server. A compelling use case is a distributed network of hospitals collaboratively training a tumor classifier on sensitive patient data, without ever sharing raw records.

Weights Aggregation via FedAvg. The global model weights w^(t+1) are computed as a weighted average of local weights w_k^(t), proportional to each node’s dataset size n_k over the total n. This is the standard Federated Averaging algorithm.

System Architecture

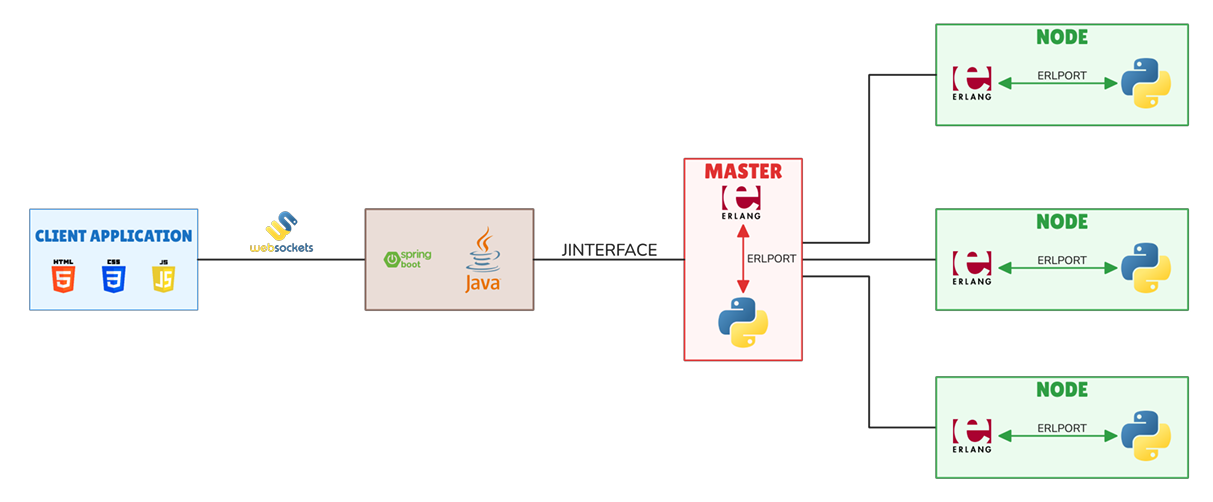

The platform is composed of four tightly integrated layers: an Erlang Master Node as the distributed coordinator, a Python Master for model management and aggregation, Erlang/Python Worker Nodes for local training, and a Java Spring Boot backend bridging the administrator UI to the Erlang system via JInterface and WebSocket.

Erlang Master Node. The master acts as the central task coordinator. An OTP supervisor monitors the gen_server process, restarting it on failure (up to 10 times within 60 seconds, transient restart type). The master initializes a linked Python process for model aggregation, manages node discovery via .erlang.hosts whitelisting, and distributes load and train pipelines across connected nodes. Every 10 seconds it attempts to reconnect to all known hosts; nodeup and nodedown messages drive the reconnect procedure. The master also saves model weights every 3 epochs as a backup.

Node Discovery and Fault Tolerance. Two state lists are maintained: currentUpNodes for active training participants, and previousInitializedNodes for efficient partition recovery. When a crash or disconnection occurs during a blocking wait, the master dynamically adjusts the expected response count rather than timing out. Late responses from nodes that disconnected and reconnected mid-operation are discarded.

Python Master via Erlport. The Erlang master spawns a Python process via the Erlport library, which handles bidirectional inter-language communication over a port. The Python process hosts the NetworkModel (a tf.keras.Model subclass), implements the FedAvg aggregation, and handles model serialization with pickle. Supported commands include get_model, get_weights, update_weights, save_model, and load_model.

Python Worker Nodes. Each worker loads a local dataset partition via a dataParser.py stub, receives the model definition and current weights from the master, performs a local training epoch, and returns {weights, train_accuracy, test_accuracy} back to the Erlang node. Workers also stream real-time node metrics (CPU, RAM, response time) to the master at 1 Hz in JSON format.

Java Back-End

The Spring Boot backend bridges the administrator UI and the Erlang master via JInterface. Two always-running threads implement a Consumer-Producer pattern over BlockingQueue objects: WebSocketForwarder broadcasts Erlang messages to all active WebSocket sessions, while ErlangController consumes UI commands and dispatches them to Erlang.

Authentication uses cookie-based session management with two roles: admin (can issue Erlang commands) and user (read-only spectator). A Spring Security securityFilterChain enforces authentication on every HTTP request, and multiple concurrent sessions per account are supported.

WebSocket via SockJS. SockJS wraps the WebSocket connection, leveraging the HTTP handshake to integrate Spring Security authentication before the connection is upgraded. All frontend events are processed by a processingInput handler that updates the live dashboard.

Session Restoration. A cacheSession queue stores all relevant UI state messages. When a new client connects mid-session, it receives the full cached state, bringing its UI to parity with long-running clients. A synchronized block prevents race conditions during session replay, and train logs are cleared on each new training run to minimize redundant messages.

Requirements

Functional. The system supports multi-node HFL training with configurable epochs and accuracy thresholds, FedAvg-based weight aggregation, real-time node monitoring, simultaneous multi-experiment execution, persistent model save/load, custom TensorFlow model injection, and training interruption.

Non-Functional. The system minimizes transmitted data (only weights, not raw datasets), is fault-tolerant against node crashes and network partitions, enforces data privacy by keeping datasets local, and supports flexible model swapping without system restart.

Results

The system was validated with a 5-node network, each holding a disjoint equal-sized partition of the MNIST dataset. The federated model was compared against a centralized baseline trained on the full dataset.

The HFL approach achieves accuracy within 0.2% of the centralized baseline, confirming that the FedAvg implementation effectively aggregates distributed knowledge without requiring any data sharing.
